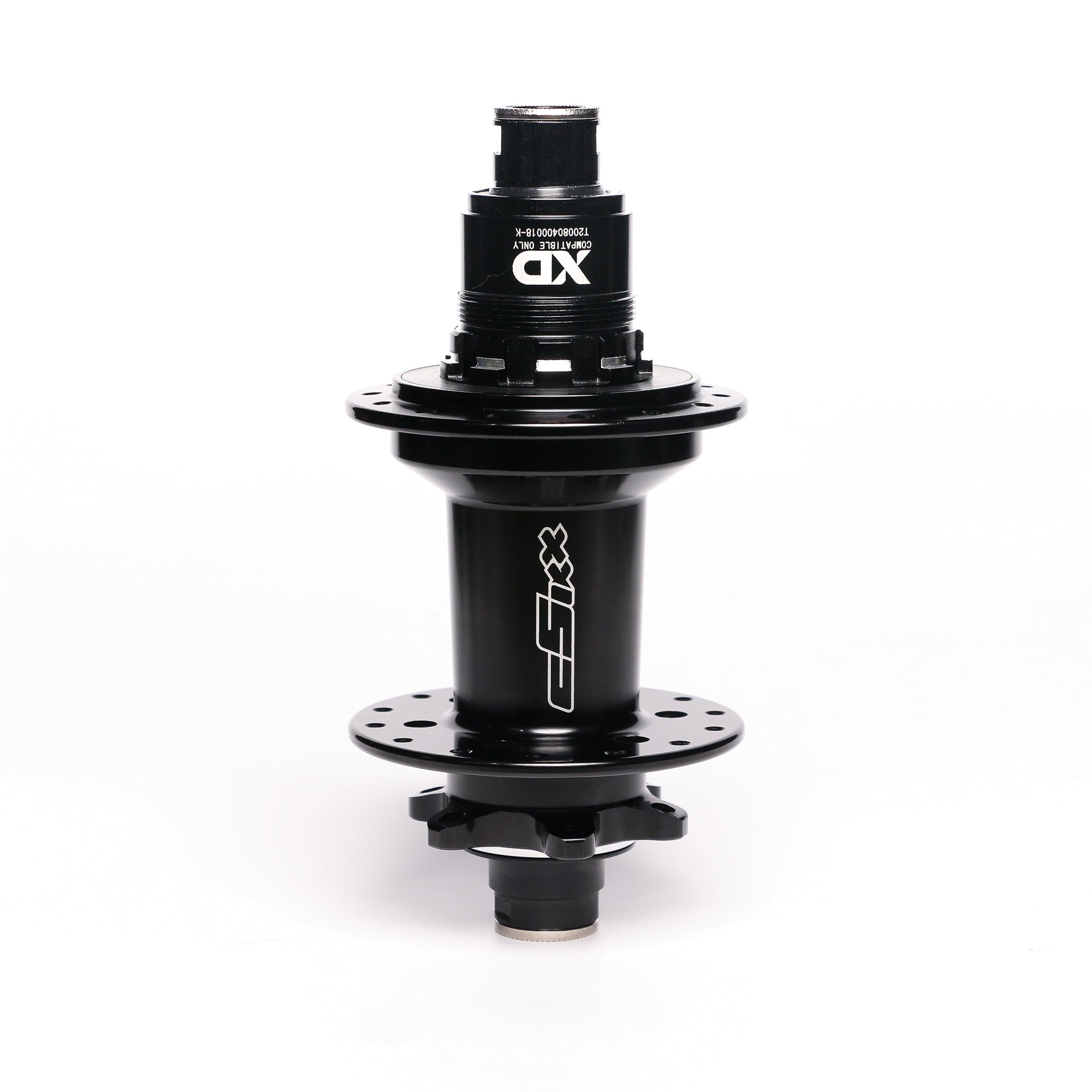

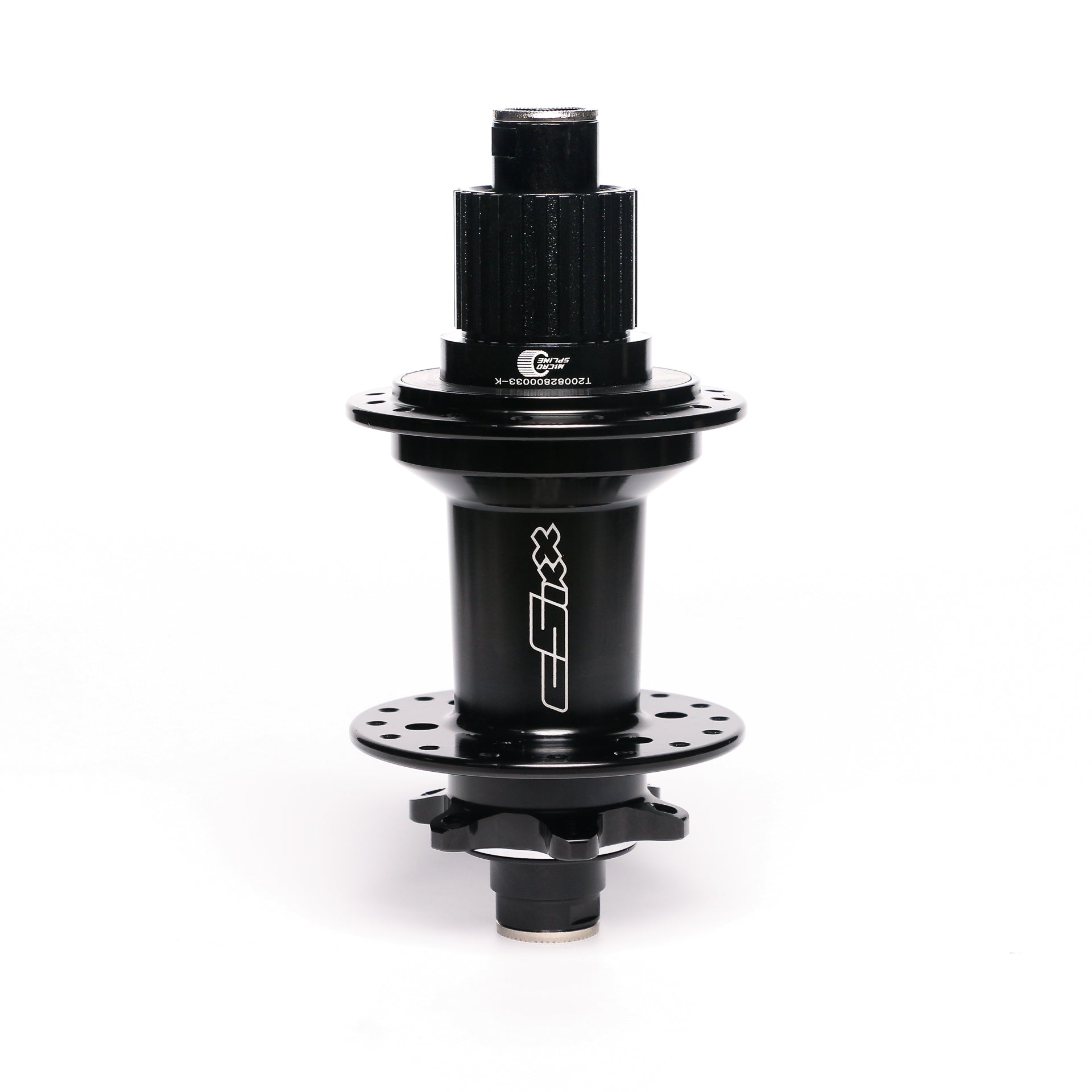

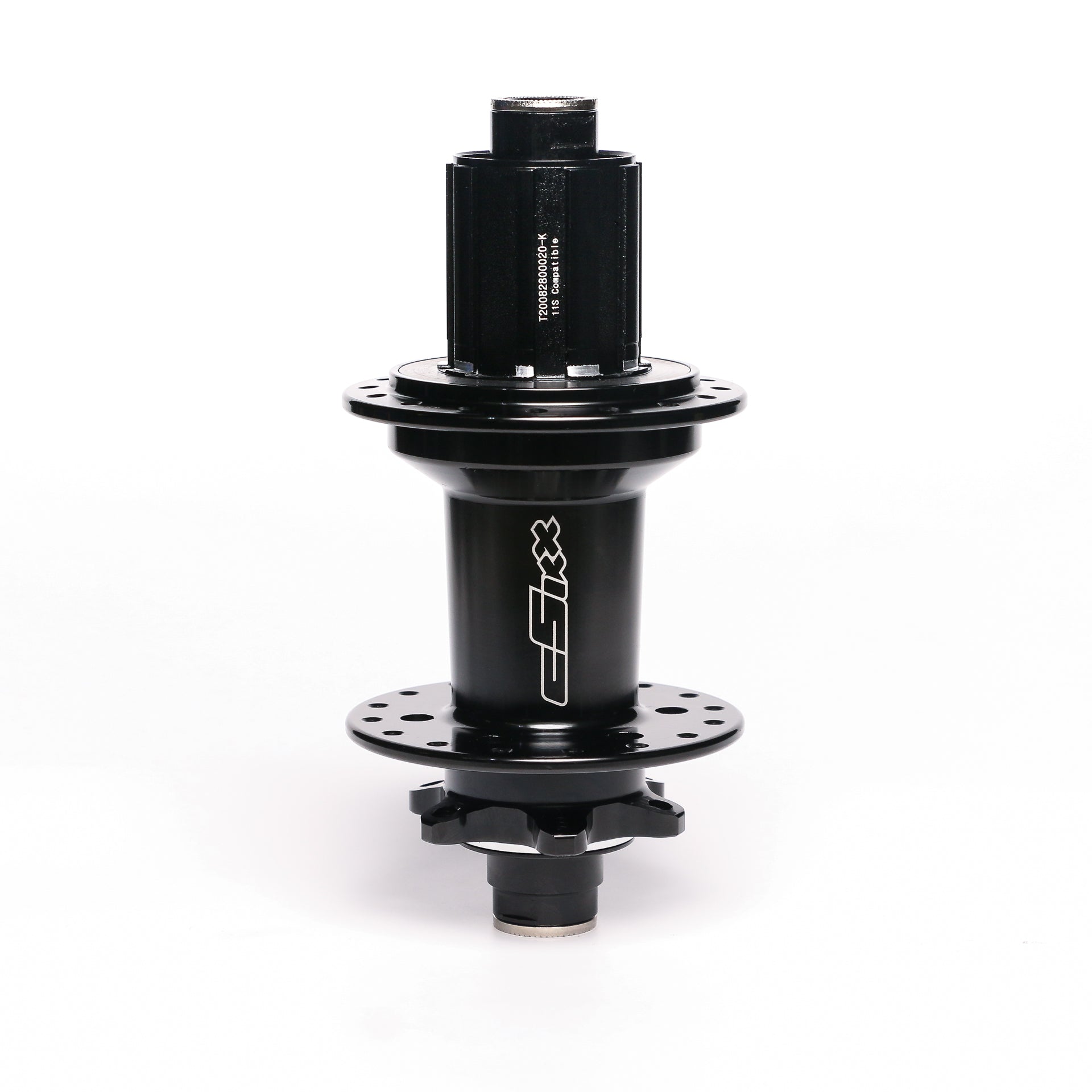

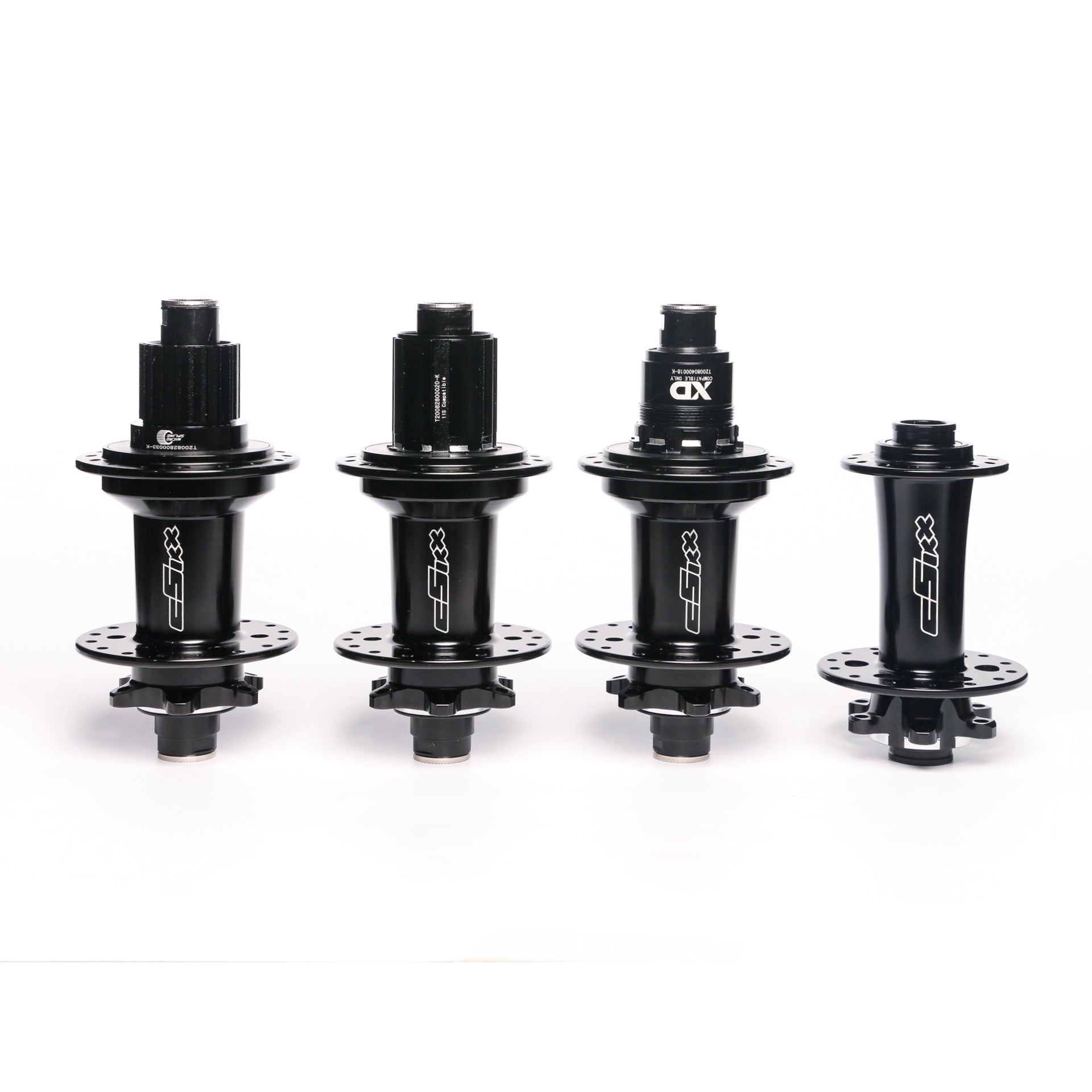

cSixx Hub - Boost - Rear
cSixx Hub - Boost - Rear
Regular price
$2,980.00
Regular price
Sale price
$2,980.00
Unit price
/
per
Couldn't load pickup availability
4 Pawls with 40 points of engagement.
8.5° engagement angle.
Angled flanges for better spoke angles.
Available Sizes | 148mm x 12mm |
Hole Count | 28 hole |
Disc Type | 6 Bolt |
Material | Aluminum |
Bearings | 6903 x 4 |

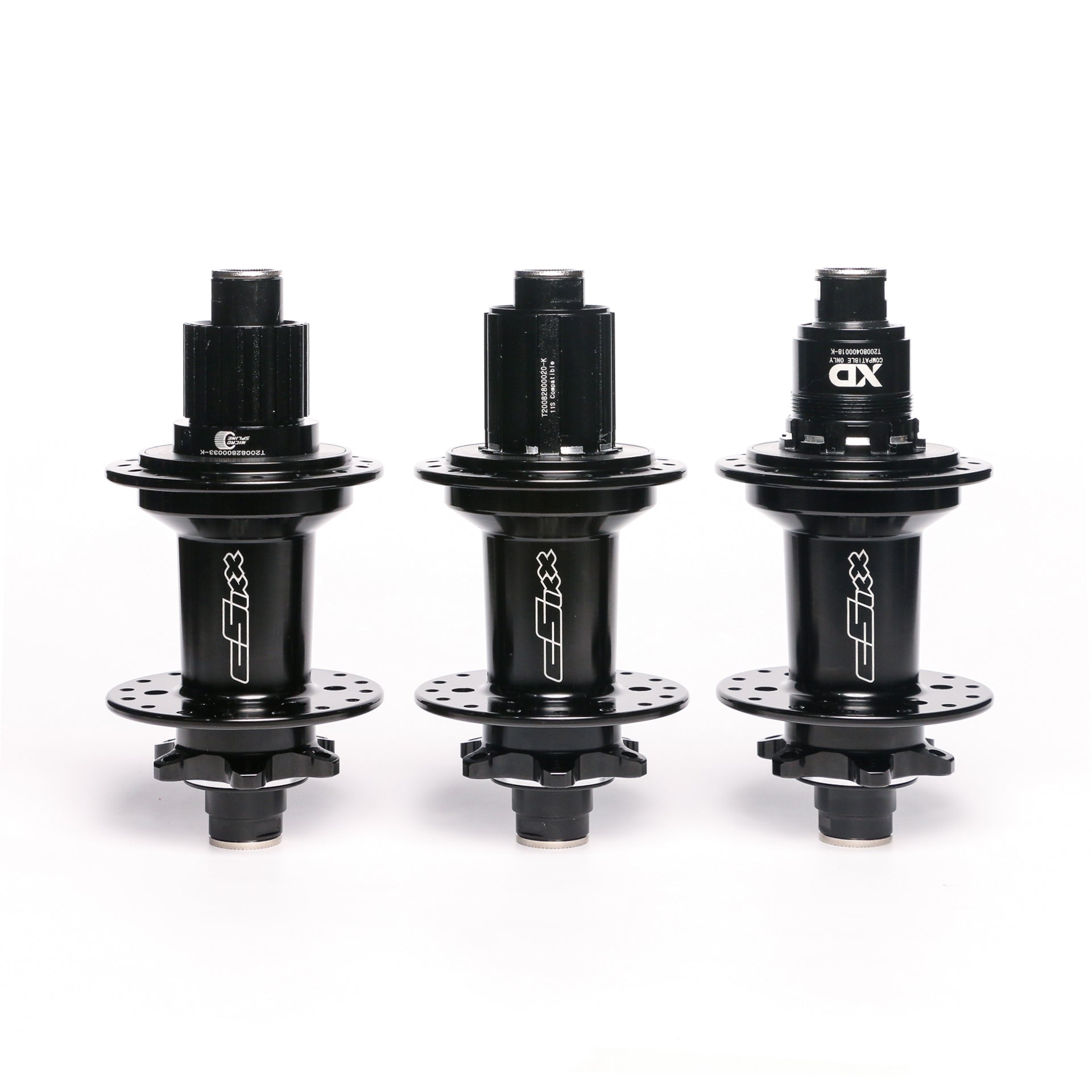

Freewheels | HG, XD, MS |
Weight | 349g |
|
||
|

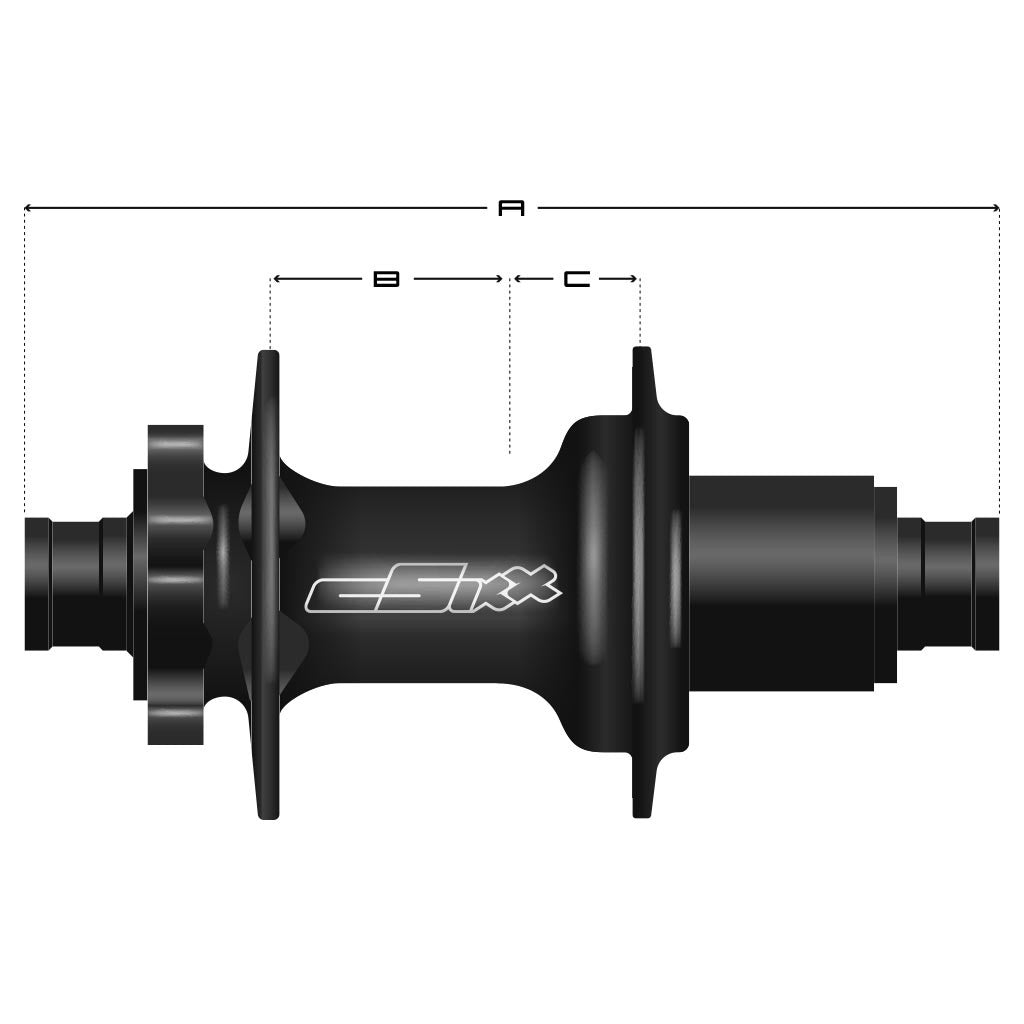

BOOST 148mm x 12mm |
|
A |
148 mm |
|
B + C |
64.1mm |
|
Offset |
6.9mm |
|
Pitch circle diameter left |
62mm |
|
Pitch circle diameter right |
62mm |
